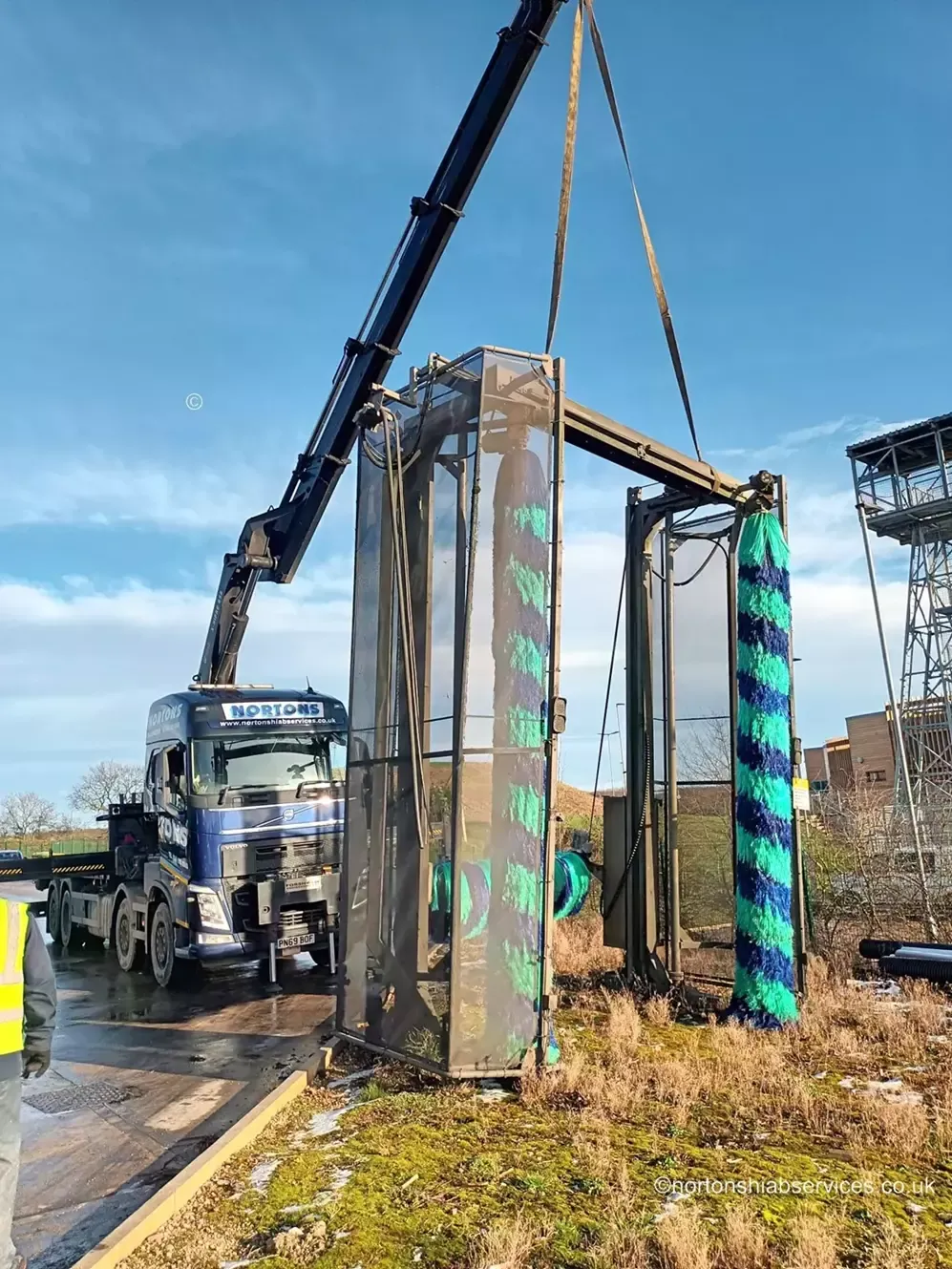

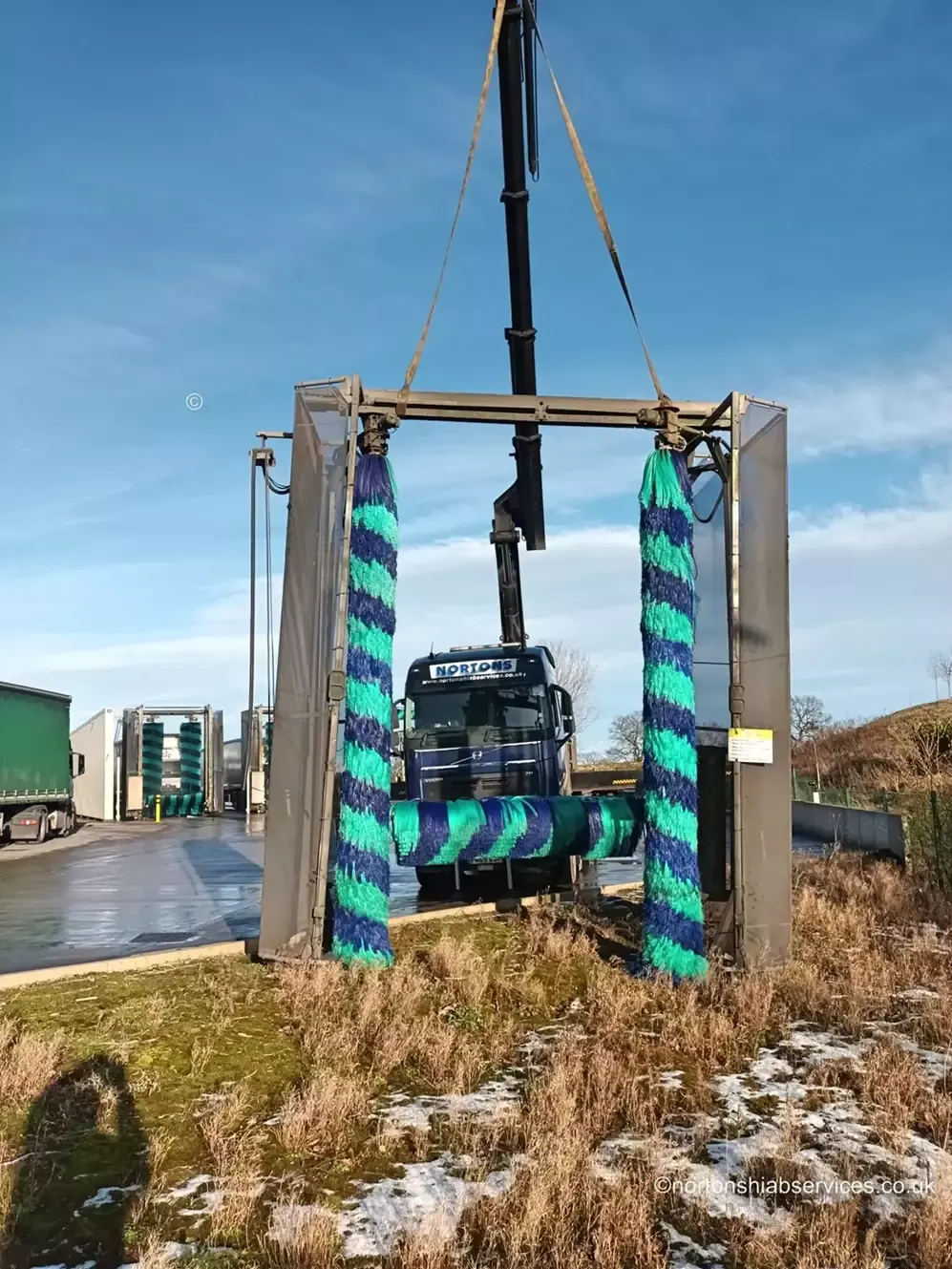

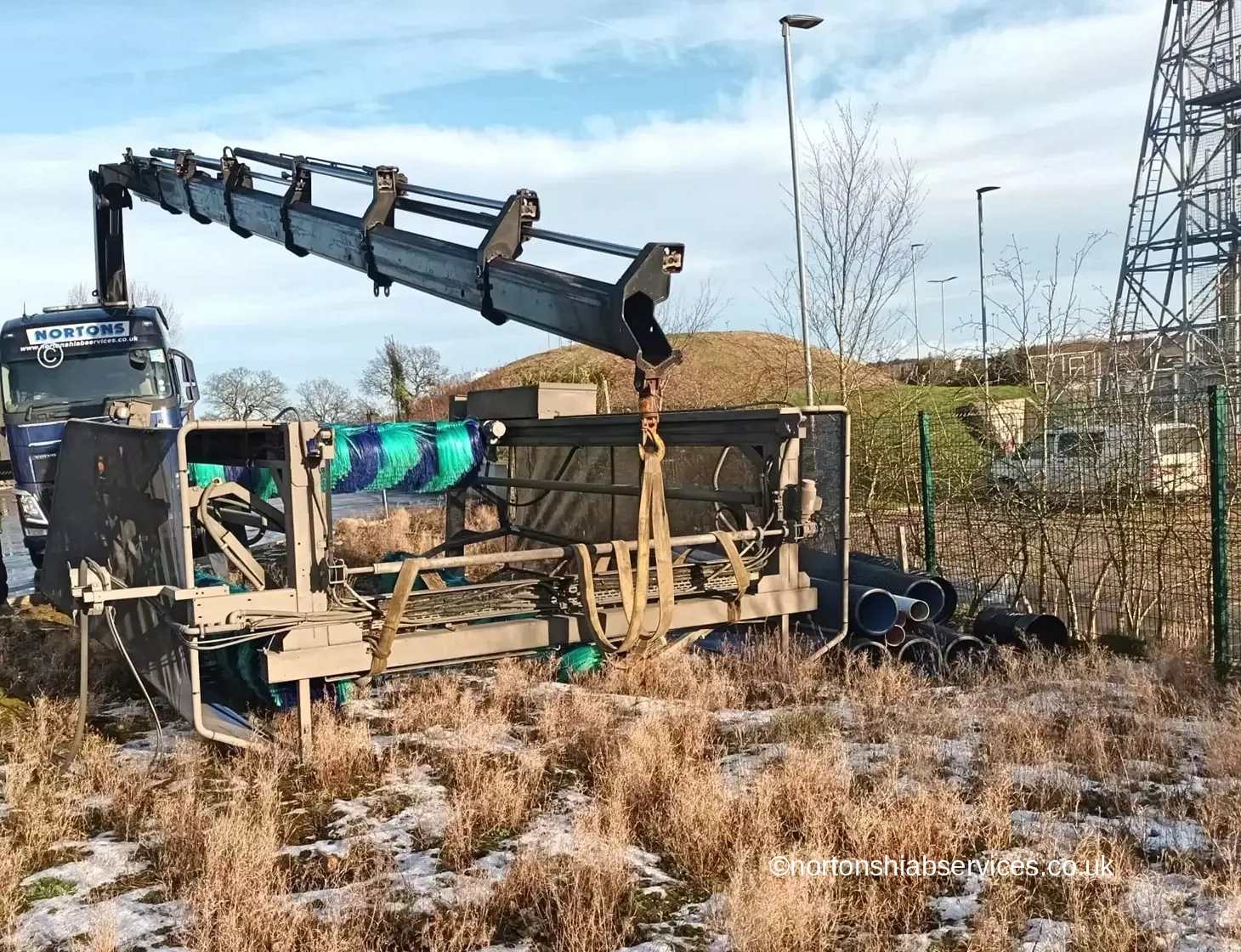

Plant set down on prepared bases
Wash bays, gantries and skid-mounted plant taken off the bed and placed on bolts rather than assembled in position.
32 tonne rigid · The lighter unit
558 Hiab hire
A five-section HIAB X-HiPro 558 EP-5 on a rear-steer eight-wheeler. 49.7 tm with ADC, 10,800 kg at 4.6 m and 14.5 m of hydraulic outreach — enough for most site deliveries without the bulk of the big cranes.
49.7 tmLifting moment with ADC
10,800 kgMaximum lift at 4.6 m
14.5 mHydraulic outreach
5Boom sections
What it is
The one that covers most jobs
A Volvo eight-wheel rear-steer rigid at 32 tonnes gross, carrying a HIAB X-HiPro 558 EP-5 loader crane rated at 49.7 tm with Automatic Duty Control. Euro VI, like the other 32 and 44 tonne wagons.
Five boom sections and 14.5 m of outreach cover the great majority of what a hiab is actually asked to do: a cabin off the bed and onto a base, a pallet over a wall, a machine into a yard. The crane weighs 4,562 kg without its legs, which is well under two tonnes lighter than the 858 — weight that goes back into the payload.
If the reach or the weight is beyond it we will tell you and put the job on the 855 or the 858 instead.
On the job
Everyday work for a rigid

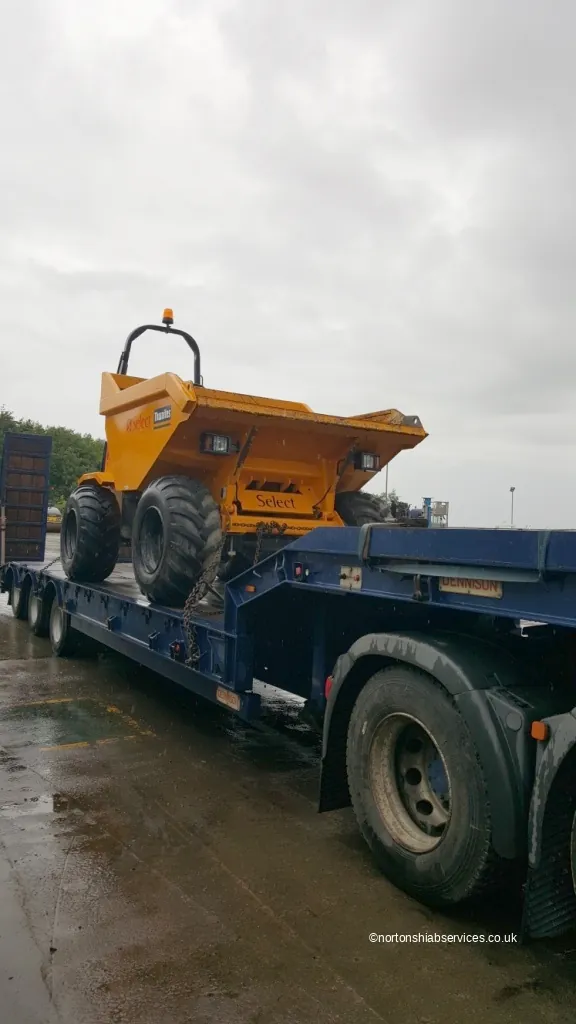

Small plant moved between sites
Dumpers, rollers and mixers loaded by the same crane that carries them, with no ramps and no second vehicle.

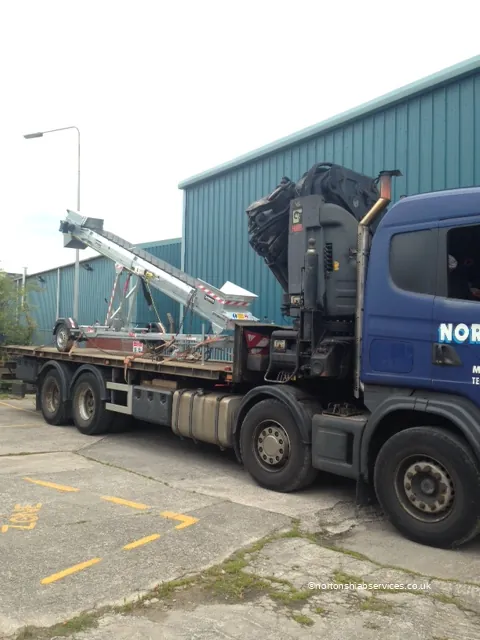

Awkward one-off items
Conveyors, frames and fabrications that are neither heavy nor simple, handled with the right slinging rather than the biggest crane.

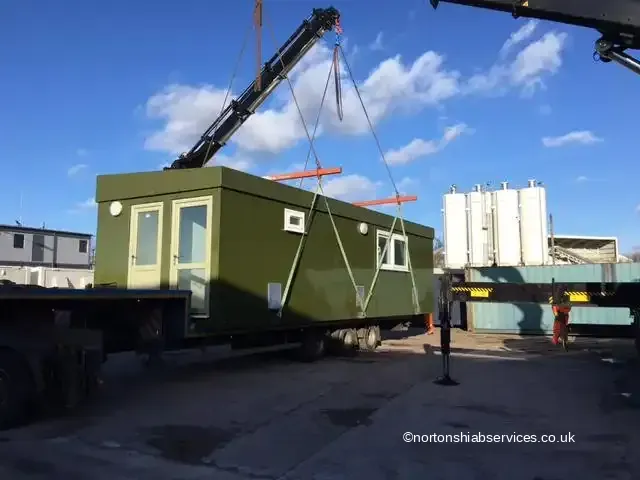

Kiosks and small buildings
Weighbridge offices, gatehouses and security cabins lifted into position on live sites.

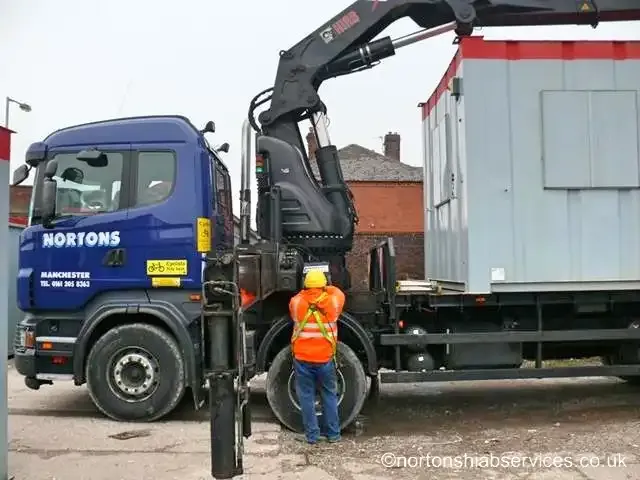

The driver / operator comes with it
The same person drives the lorry and works the crane, so there is nobody else to book and nothing to wait for when the vehicle arrives.

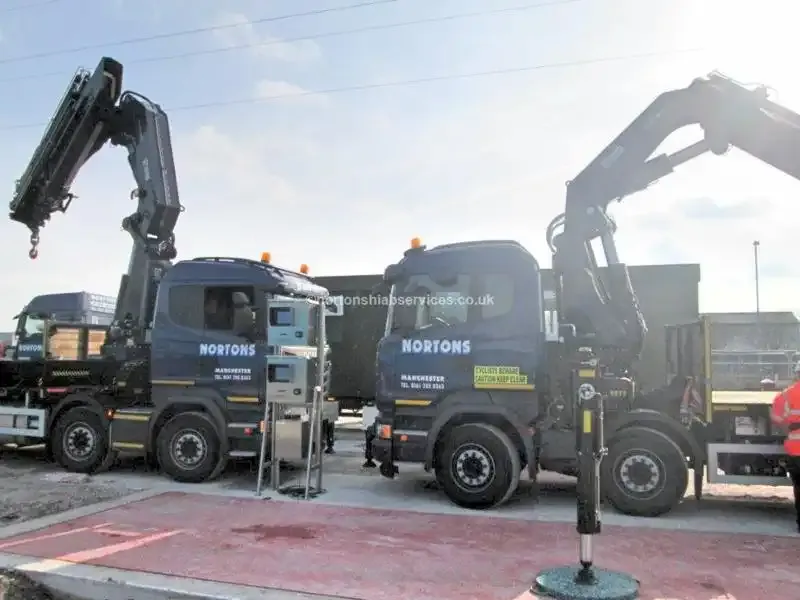

A second rigid where it helps
Where the work will not fit one vehicle and one day, we send another off the same fleet rather than stretch a single lorry over both ends of the job.
The load chart
Capacity at radius, with and without ADC
Safe working loads with the crane set up correctly on firm, level ground.
HIAB X-HiPro 558 EP-5
49.7 tm with ADC 14.5 m hydraulic outreach 5 boom sections
| Radius | 4.6 m | 6.4 m | 8.3 m | 10.3 m | 12.3 m | 14.5 m |
|---|---|---|---|---|---|---|
| Capacity (ADC) | 10,800 kg | 7,600 kg | 5,700 kg | 4,500 kg | 3,750 kg | 3,150 kg |
| Without ADC | 10,600 kg | 7,000 kg | 5,300 kg | 4,150 kg | 3,450 kg | 2,900 kg |
Source: manufacturer data sheet
558EP-5 HIAB x-hipro.pdf. Crane weight 4,562 kg without support legs. Full charts for every crane are on the
lifting capacity page.
Nearly 50 tonne-metres from a five-section crane. The 558 rates higher than a good many six and seven-section machines with larger model numbers. Compare charts, not names — ours are all published side by side on the lifting capacity page.
Common questions
558 hiab hire, answered
Why hire the 558 rather than the 858?
Cost and availability, mostly. If your lift sits inside the 558 chart there is no advantage in sending a bigger crane, and the smaller unit is more often free at short notice. It is the same 32 tonne eight-wheel chassis underneath, so access is identical.
What will it lift?
With ADC engaged, 10,800 kg at 4.6 metres, 5,700 kg at 8.3 metres and 3,150 kg at its full 14.5 metre radius. Without ADC, 10,600, 5,300 and 2,900. The full chart is on this page.
How does it compare with a five-section crane elsewhere?
The 558 EP-5 X-HiPro is a five-section crane rated at 49.7 tonne-metres with ADC. That is more than most machines carrying a bigger-sounding model number, which is the whole reason we publish charts rather than names.
Is it suitable for site cabins?
For most single units, yes. A standard 32ft by 10ft anti-vandal cabin is comfortably inside the chart at normal set-down radius. Tell us what the unit is and where it has to go and we will confirm before you book.
Does it come with a driver?
Yes. Every vehicle we hire out goes with a Nortons driver / operator, most of them ALLMI trained and CPCS qualified. We do not hire cranes without a driver / operator.
